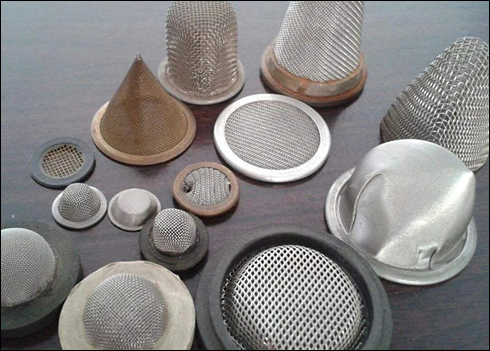

Stainless Steel Filter Disc, Perforated Filter Disc,Plain/Twin Dutch Screens Filter Disc with Centre Hole Lasercut

Stainless steel filter disc is wildly used in the following industries: oil, chemical industry, chemical fibre, electricity, medicine making machinery, foods and drinks, and cosmetics.

S.S 304/316 Filter Discs.
Shape: Circular.
Mesh Type:wire mesh plain weave/twin dutch screens with different absolute micron sizes.
Structure: Single Layer/Double Layer/Multi-Layer.
Edge Material: Aluminum (As Per Requirement)
Filtration Rating: 3 To 300 Micron
Design Temperature: <95 ℃
Max Working Pressure: Less Than 1.1 MPa
Usage Type: OIL Filtration,Distillation, Absorption, Evaporation And Filtration Process, Mirror Polishing Or Electrolytic Polishing Etc.

We offer your technical and commercial with schedule, including shipment.

Features:
1. Neat and precise, without bug.
2. Regulate and precise mesh
3. Reliable filtering precision
4. High compressive strength
5. Hot-resistance and rust-resistance
6. Wear-resistance
7. Good moulding

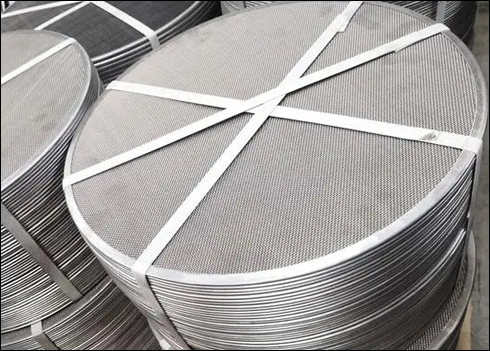

We can provide filter disc for the realization of specific disc filters with outer frame, according our attached drawing and specifications.Please adapt filtration sizes according to your standards.
Material frame + filter : SS316L
Differential pressure : max. 1 bar
Particule size to be filtered :
Model 1 : approx. 100 μm
Model 2 : approx. 150 μm
Model 3 : approx. 175 μm
Model 4 : approx. 200 μm
Model 5 : approx. 225 μm
Model 6 : approx. 250 μm

We offer filter disc should include all below details:
Clear Delivery time.
Optional Shipping cost.
Country of origin.
Drawings / Data Sheet
Total Weight & Dimensions for shipping purpose.

Stainless Steel Wire Cloth Discs 4" Diameter, 60 x 60 Mesh Size
Stainless Steel Wire Cloth Discs 6" Diameter, 80 x 80 Mesh Size
Stainless Steel Wire Cloth Discs 8" Diameter, 100 x 100 Mesh Size
Material: ss304, 316, 316l stainless steel
Standard roll length of stainless steel wire mesh: 50'' to 100"
Other specifications of stainless steel wire mesh are also available.

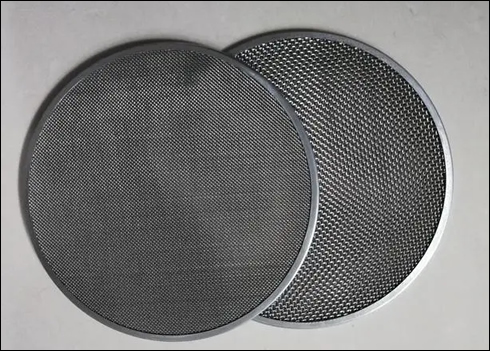

We supply of plain/twin dutch screens with different absolute micron sizes as below :

Application: Automatic Horizontal Plate Filter
Filter disc with centre hole lasercut
Disc OD : 325 mm -0/+1 mm
Disc ID : 53 mm -0/+1 mm
Multilayered sintered mesh with/without laminate as per availability for different micron size
Opening: 5 μ,10-15 μ,20-30μ,50-65 μ,120 μ
2 Layer
Material : 316/316L
Qty nos for each micron size

We provide perforated filter discs to filter air at normal atmospheric pressure. the specification of the filter disc are as follows:

Material. stainless steel or aluminium .
Thickness . 2 - 3 mm
Disc diameter. 380mm diameter ( could be 355 to 380mm dia.)
Disc shape. Round
Hole diameters. 2 - 3mm
Layers. Single.
Frame. Margin or wrapped ( edge must be safe to touch )
Border material. Aluminium - if required.

The filter disc is for a system which we have designed and am patenting at present. We supply the filter discs samples which your can test.

#120 mesh 0.08mm(thickness) X 330mm(diameter) screen mesh to filter impurities.

Stainless Steel Filter Wire Mesh Disc 30 mesh 304 stainless steel wire mesh disc/filter/screen 1-1/8" inch dia.

Professional Filtering mesh packs(for gas, liquid and liquid)

Specification Table

mesh	wire dia (MM)	Material (AISI)
12 X 64	0.58/0.40	304  316
24 X 110	0.36/0.25	304 316
14  X88	0.50/0.33	304 316
30 X150	0.18/0.14	304 316
40 X200	0.14/0.11	304 316
50 X250	0.10/0.071	304 316
80 X700	0.06/0.05	304 316
165 X800	0.071/0.040	304 316
165 X1400	0.05/0.032	304 316
200 X1800	0.05/0.03	304 316
325 X2300	0.030/0.025	316L
400 X2800	0.030/0.02	316L

Filter disc similar to a screen filter, also known as sintered filters disc, it is comprised of woven wire mesh fabrics that remove solids from the influent stream. filter discs have tiny holes that trap very small particles. For a discussion on making filter discs for stainless steel mesh, Pls visit http://www.stainlesssteelwiremesh.org
