Stainless Steel Architectural Mesh

Stainless steel architectural mesh is often specified for architectural applications, both internally and externally(also named facades mesh). Most commonly Grade 304 is specified, however Grade 316 is also used.

Internally
Grade 304, Stainless steel architectural mesh

Stainless Steel Architectural Mesh applications include external mesh facades, ceilings, solar shading, mesh balustrades, decorative screens, partitions and wall cladding.

Stainless woven wire mesh is a sustainable material which offers superior economic and environmental benefits as well as high strength to weight ratio, ease of fabrication and excellent aesthetic appeal.

Material: stainless steel type 304, 304L, 316, 316L

Max Width: 8m

Length: According to custom's requirment.

Stainless Steel Architectural Mesh
Decorative metal mesh with stainless steel wire mesh

Some Specifications For Your  Reference

Stainless Steel Woven  Architectural Mesh Brass Woven  Architectural Mesh


1. Warp cable dia.: 2.0mm x 3
2. Cable pitch: 80.0mm
3. Weft rod dia.: 3.0mm
4. Rod pitch: 10.0mm
5. Weight: 6.6kg/m2

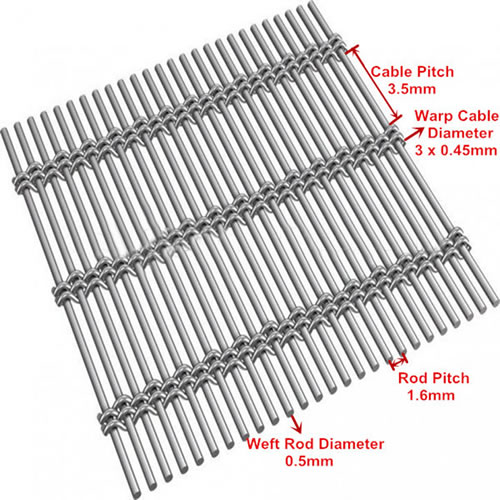

1. Warp cable dia.:0.45mm x 3
2. Cable pitch: 3.5mm
3. Weft rod dia.: 0.5mm
4. Rod pitch: 1.6mm
5. Weight: 2.1kg/m2



Stainless Steel Architectural mesh (Type)

ITEM Cable Diameter Mesh Opening Size
  mm inch mm
Square mesh
3244 3.2 4 x 4 102 x 102
3233 3.2 3 x 3 76 x 76
2044 2.0 4 x 4 102 x 102
2033 2.0 3 x 3 76 x 76
1644 1.6 4 x 4 102 x 102
1633 1.6 3 x 3 76 x 76
1622 1.6 2 x 2 51 x 51
Rectangle mesh
 1530 1.5     30x52
 1540  1.5    40x69
 1550  1.5    50x87
 1560  1.5    60x104
 1570  1.5    70x121
 1580      80x139
 15100      100x173

 15200     200x346
Special size can be made according to customers required

Material: Stainless steel
Open area: 0%
Cable diameter: 2mm X 1
Cable pitch: 17.5mm
Rod diameter: 1.5mm
Rod pitch: 1.5mm
Weight: 10.98kg/ m2

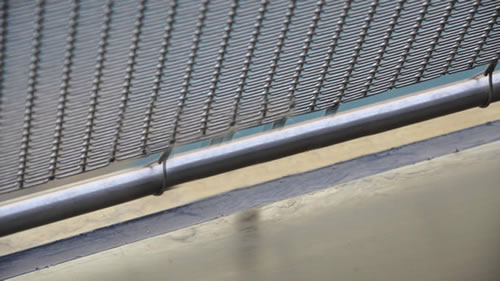

Application
